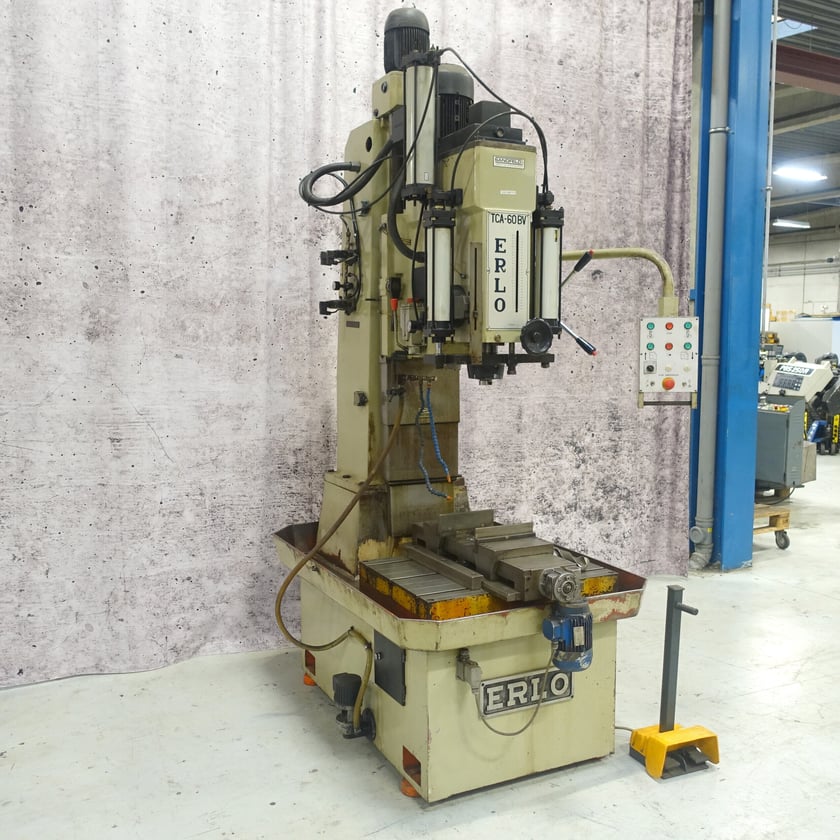

Used Erlo TCA 60 BV drilling machine - MT 5.

Item number: 1019273_
request_contact.list_memberships: {"company":{},"companyDefaults":{},"companyWithDefaults":{},"companyWithoutDefaults":{},"contact":{},"contactDefaults":{},"contactVid":null,"contactWithDefaults":{},"contactWithDefaultsPreview":{"hubspot_owner_id":{}},"contactWithoutDefaults":{},"dealId":null,"emailCampaignId":null,"emailPortalPair":null,"idType":null,"identifier":null,"isHubspotUser":false,"isLoggedIn":false,"isSsoLogin":false,"lazyAccountWithDefaultsForPreview":{},"lazyCompanyWithDefaults":{},"lazyCompanyWithDefaultsForPreview":{},"lazyCompanyWithoutDefaults":{},"lazyContactWithDefaults":{},"lazyContactWithDefaultsForPreview":{},"lazyContactWithDefaultsPreview":{"hubspot_owner_id":{}},"lazyContactWithoutDefaults":{},"lazyOwnerDefaultsWithDefaultOwnerLookup":{},"lazyOwnerWithDefaults":{},"lazyOwnerWithDefaultsForPreview":{},"lifecycleStage":null,"lifecycleStageId":null,"listMemberships":[],"owner":{},"ownerDefaultsWithDefaultOwnerLookup":{},"ownerWithDefaults":{},"qualified":false}
CONTACT US
Condition
Used
Morse taper
5
Drilling capacity
Ø60 mm. (st. 70 kg./mm2)
Thread capacity
M50.
Quill travel
260 mm.
Throat/reach
500 mm.
RPM.
40-1065.
Table size
800 x 595 mm.
Automatic feed
Ja
Motor
6,6 kW.
Year
1997
Country of origin
Spain.
Size (L x W x H)
1500 x 1000 x 2975 mm.
Weight
2500 kg.
With electromagnetic feed, self centering vice, OMG VH252 double head (spindle distance min. 55 mm. max. 240 mm.) and coolant system. Very heavy duty machine.

Contacts at Sandfeld A/S

Main no. +45 97 11 92 22
General information: info@sandfeld.com

Hans Sandfeld, Machine purchase & sale
E-mail: hans@sandfeld.com
Direct no. 97 11 77 22 - Mobile no. 20 22 22 70

Bruno Sandfeld, Machine purchase & sale
E-mail: bruno@sandfeld.com
Direct no. 97 11 77 23 - Mobile no. 20 14 80 22

Kim Borup, Machine purchase & sale
E-mail: kim@sandfeld.com
Direct no. 20 23 06 22

Michael Green, Machine purchase & sale, spare parts & tools
E-mail: michael@sandfeld.com
Direct no. 97 11 77 21 - Mobile no. 40 15 54 51

check-circle_yellow_02

Steel gearbox.

check-circle_yellow_02

Motorized movement of drilling head.

check-circle_yellow_02

Heavy duty drilling machine.
